| Model |

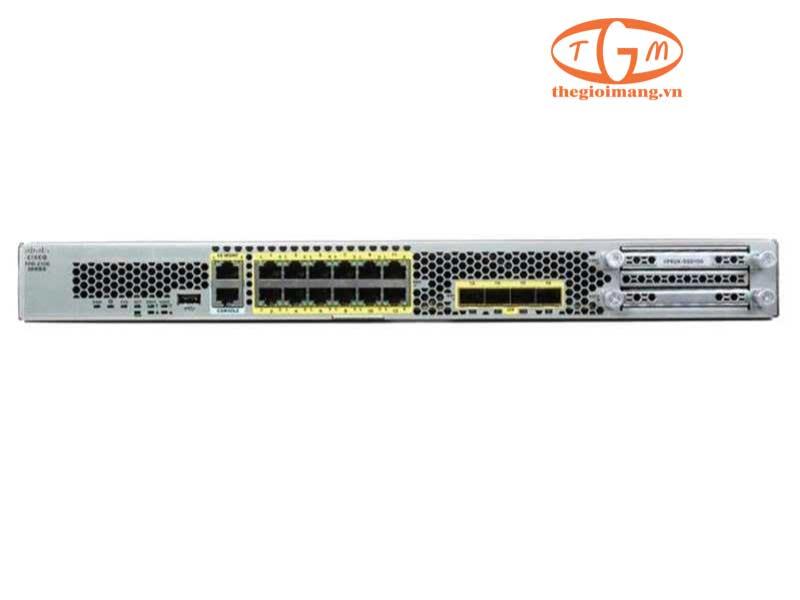

FPR2110-NGFW-K9 |
| Hardware specifications |
| Maximum number of interface |
Up to 16 total Ethernet ports (12 x 1G RJ-45, 4 x 1G SFP) |
| Network modules |
None |
| Integrated I/O |
12 x 10M/100M/1G BASE-T Ethernet interfaces (RJ-45)
4 x 1 Gigabit (SFP) Ethernet interfaces |
| Integrated network management ports |
1 x 10M/100M/1GBASE-T Ethernet port (RJ-45) |
| Storage |
1 x 100 GB, 1 spare slot (for SMP) |
| Serial port |
1 x RJ-45 console |
| USB |
1 x USB 2.0 Type-A (500mA) |
| Dimensions (H x W x D) |
4.4 x 42.9 x 50.2 cm |
| Form factor (rack units) |
1RU |
| Power Supplies |
| Power supply configuration |
Single integrated, 250W AC power supply |
| AC input voltage |
100 to 240V AC |
| AC maximum input current |
< 2.7A at 100V |
| AC maximum output power |
250W |
| AC frequency |
50/60 Hz |
| AC efficiency |
> 88% at 50% load |
| DC input voltage |
- |
| DC maximum input current |
- |
| DC maximum output power |
- |
| DC efficiency |
|
| Redundancy |
None |
| Fans |
4 integrated (2 internal, 2 exhaust) fans2 |
| Noise |
56 dBA @ 25℃; 74 dBA maximum |
| Rack mountable |
Yes. Fixed mount brackets included. (2-post). Mount rails optional (4-post EIA-310-D rack) |
| Weight |
16.1 lb (7.3kg) with 2x SSDs |
| Temperature: operating |
32 to 104 ℉ (0 to 40℃) |
| Temperature: non-operating |
-4 to 149℉ (-20 to 65℃) |
| Humidity: operating |
10 to 85% non-condensing |
| Humidity:non-operating |
5 to 95% non-condensing |
| Altitude: operating |
10,000 ft (max) |
| Altitude: non-operating |
40,000 ft (max) |
| Performance specifications and feature highlights with the Cisco Secure Firewall Threat Defense (TD) image |
| Throughput: FW + AVC (1024B) |
2.6 Gbps |
| Throughput: FW + AVC + IPS (1024B) |
2.6 Gbps |
| Maximum concurrent sessions, with AVC |
1 Million |
| New connections Per Second with, AVC |
14K |
| TLS |
365 Mbps |
| Throughput: NGIPS (1024B) |
2.6 Gbps |
| IPSec VPN Throughput (1024B TCP w/Fastpath) |
950 Mbps |
| Maximum VPN Peers |
1,500 |
| Cisco Firepower Device Manager (local management) |
Yes |
| Centralized Management |
Centralized configuration, logging, monitoring, and reporting are performed by the Firewall Management Center or alternatively in the cloud with Cisco Defense Orchestrator |
| Application Visibility and Control (AVC) |
Standard, Supporting more than 4000 applications, as well as gelocation, users, and websites |
| AVC: OpenAppID Support for custom, open source application detectors |
Standard |
| Cisco Security Intelligence |
Standard with IP, URL, and DNS Threat intelligence |
| Cisco Firepower NGIPS |
Available: can passively detect endpoints and infrastructure for threat correlation an indicators of Compromise (IOC) intelligence |
| Cisco AMP for Networks |
Available: enables detection, blocking, tracking, analysis, and containment of targeted and persistent malware, addressing the attack continuum both during and after attacks, integrated threat correlation with CISCO Secure Endpoint is also optionally available |
| Cisco AMP Threat Grid sandboxing |
Available |
| URL Filtering: Number of Categories |
More than 80 |
| URL Filtering: Number of URL categorized |
More than 280 million |
| Automated Threat Feed and IPS signature updates |
Yes: class-ending Collective Security Intelligence (CSI) from the Cisco Talos Group |
| Third-party and open-source ecosystem |
Open API for integrations with third-party products; Snort and OpenAppID community resources for new and specific threats |
| High Availability & Clustering |
Active/active, Active/standby. |
| Cisco Secure Firewall 3100 Series allows clustering of up 8 chassis (no clustering on 3105) |
| Cisco Trust Anchor Technologies |
Firepower 2100 Series platforms include Trust Anchor Technologies for supply chain and software image assurance. Please see the section below for additional details |
Những tùy chọn quản lý nào có sẵn cho thiết bị FPR2110-NGFW-K9?
FPR2110-NGFW-K9 hỗ trợ nhiều tùy chọn quản lý: FMC; FDM (Web GUI); CLI/ API; CDO (Cloud)
